Bidfood Farutex - Mobile Pizzeria
Surface Area
22 m²
Number of Modules
1
Containerized Mobile Pizzeria for Bidfood Farutex in Wrocław

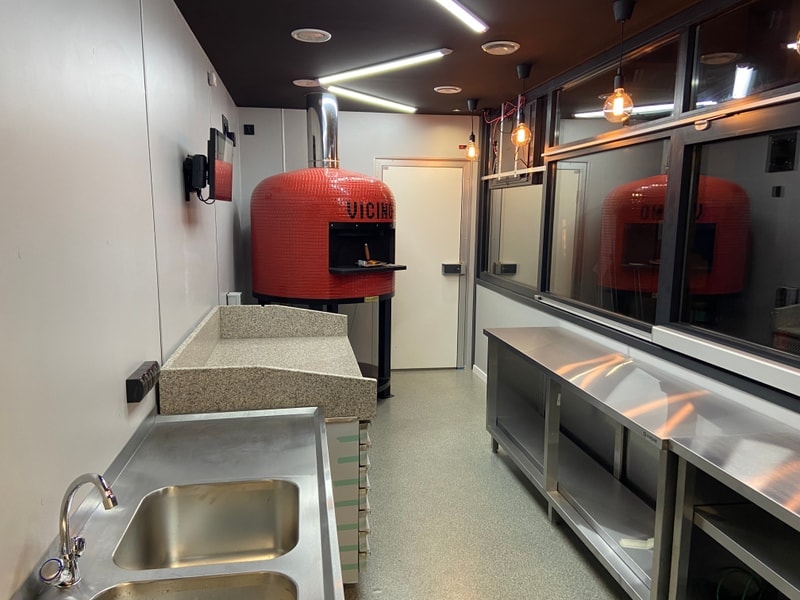

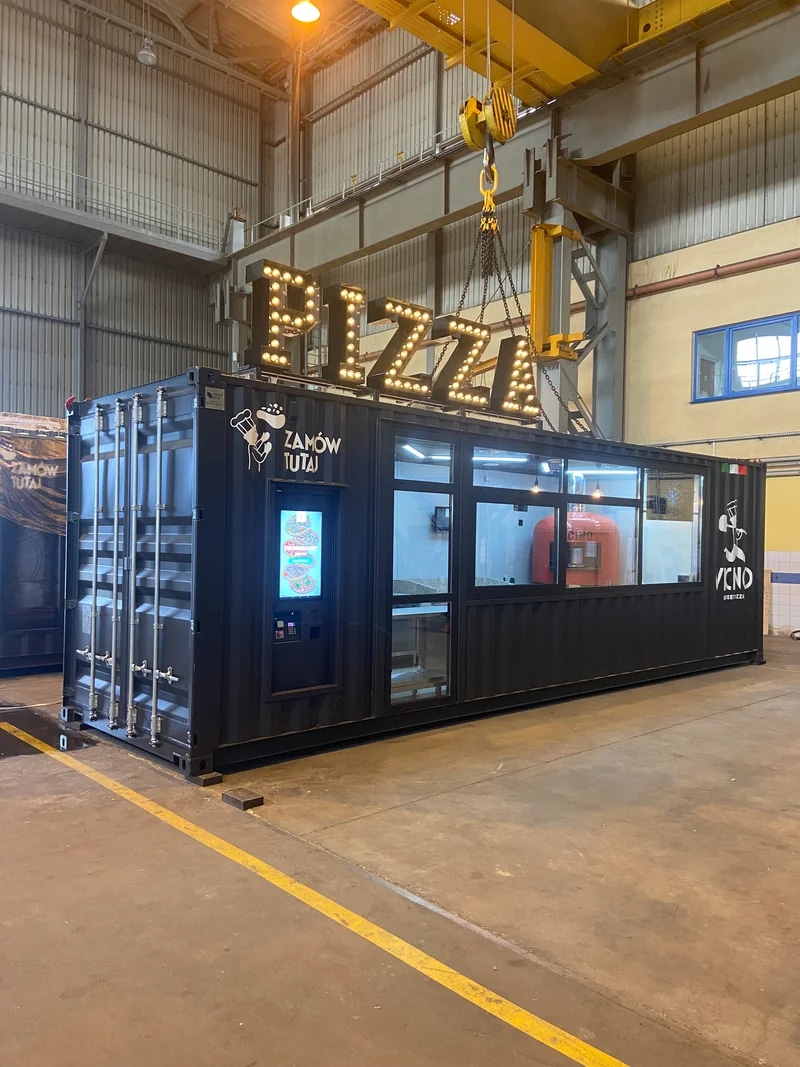

HARDBOX has completed a modern containerized pizzeria for Bidfood Farutex, located in Wrocław. This modular catering unit, with an area of 22 m², is an ideal solution for quickly and efficiently serving delicious pizza. We utilized a 40 HC shipping container, adapting its length to the project specifications, ensuring a robust and durable structure.
Key Features and Functionalities

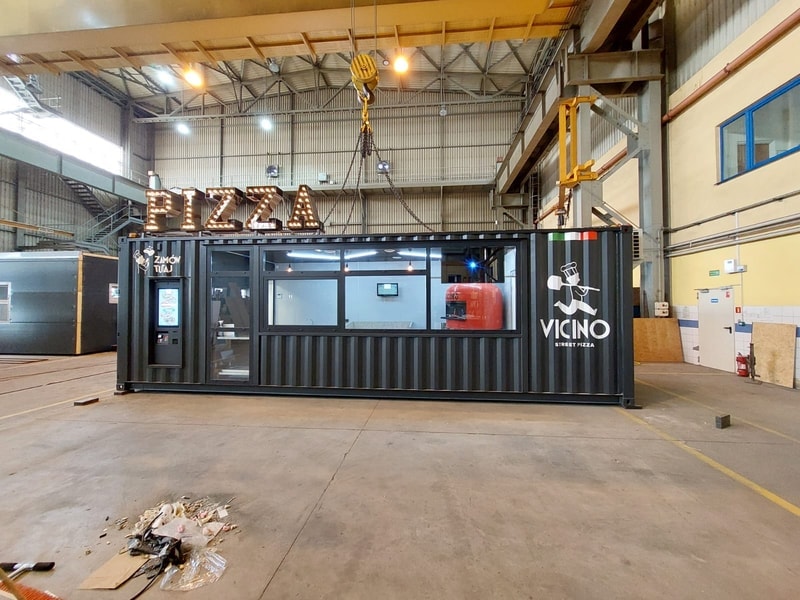

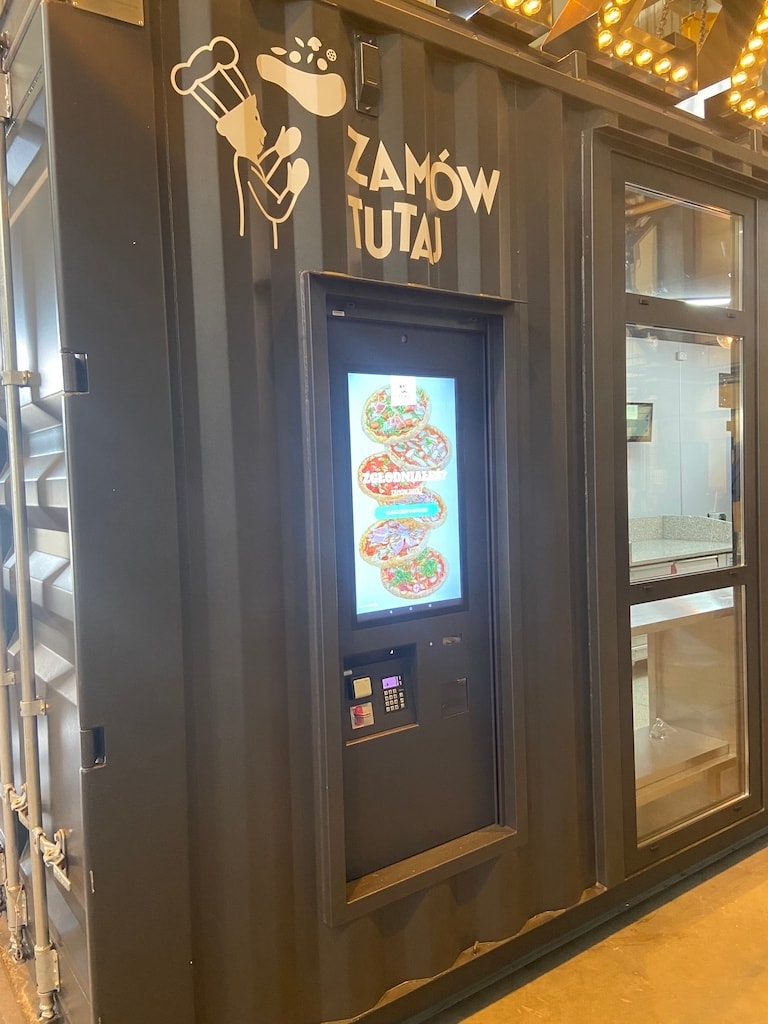

- Order Kiosk: An integrated order kiosk allows customers to quickly and independently place orders, increasing throughput and reducing queues.

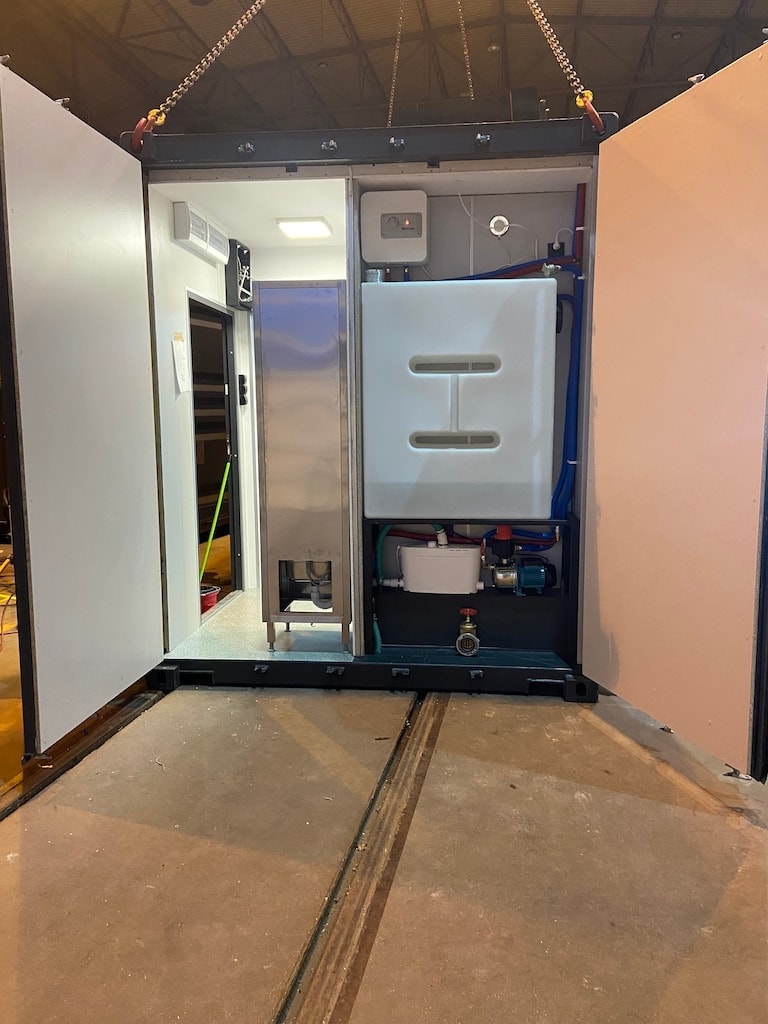

- Autonomous Water System: The container is equipped with water supply tanks and a 400L wastewater tank. Stainless steel, a booster pump, and an instantaneous water heater ensure continuous access to hot and cold water.

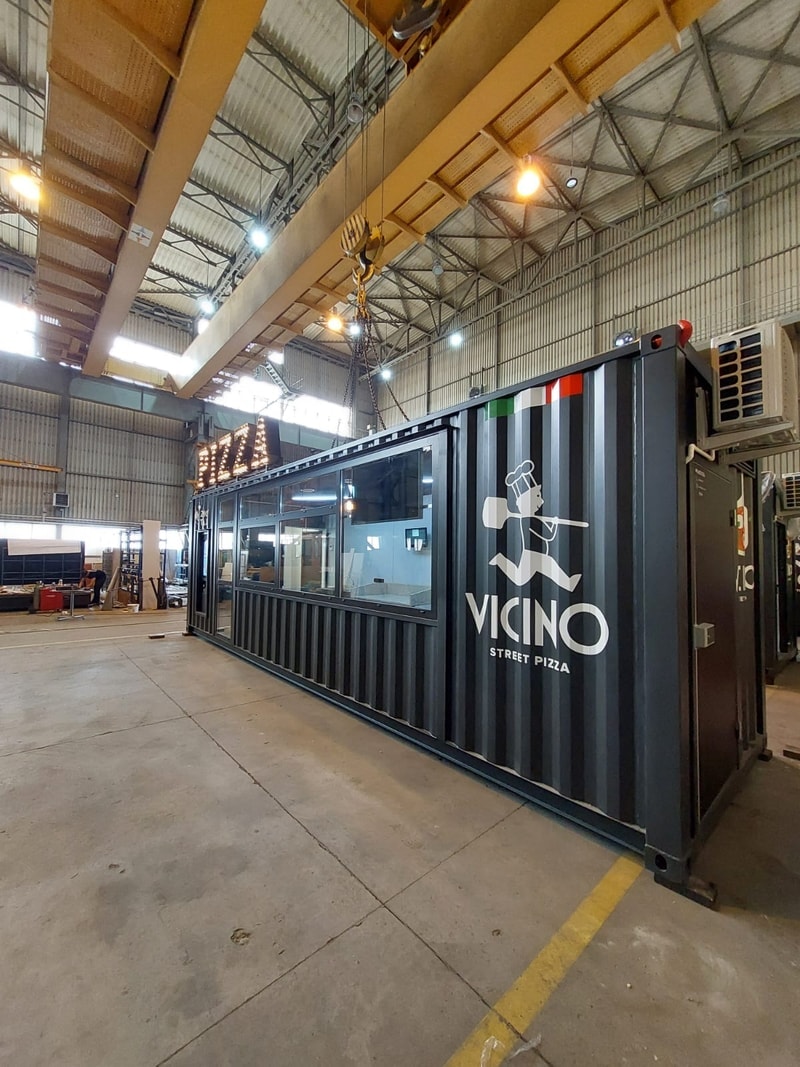

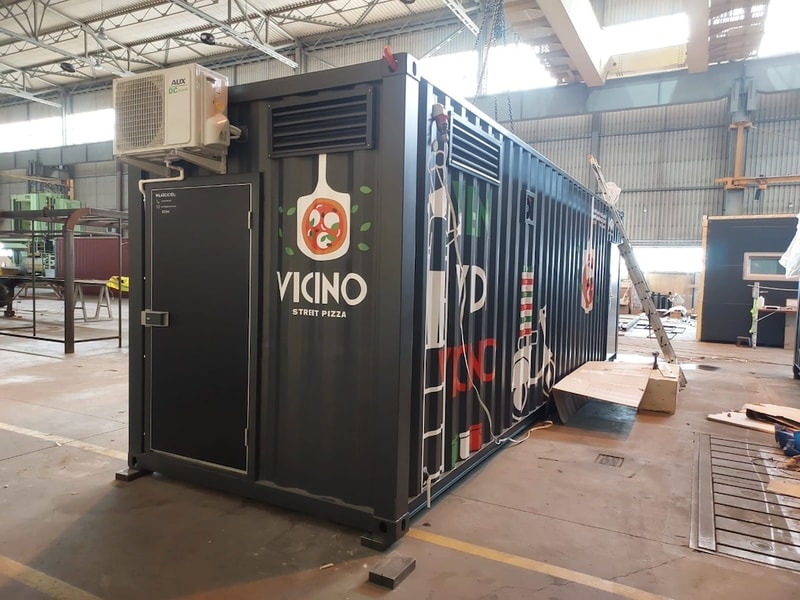

- Finishing and Insulation: The facade is made of 10mm exterior HPL panel (anthracite), providing a modern appearance. Closed-cell PUR foam insulation (40mm walls, 50mm ceiling) ensures thermal comfort throughout the year.

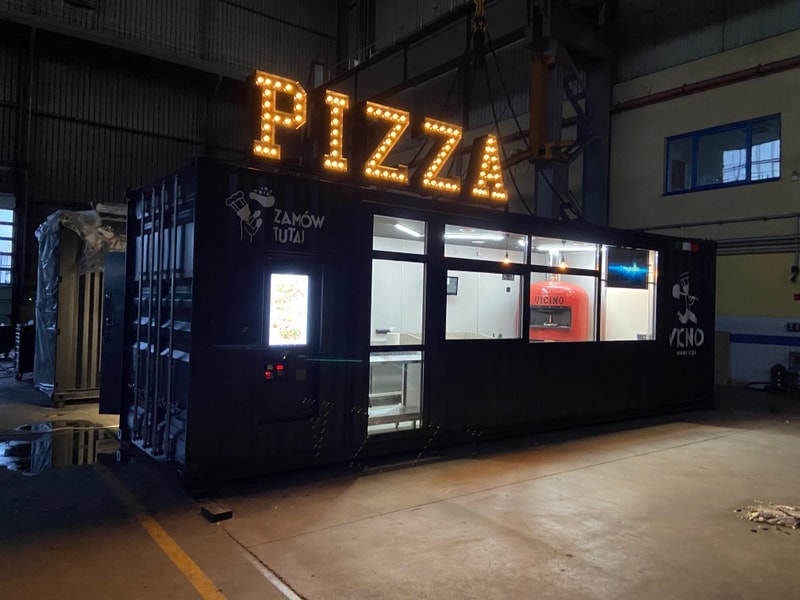

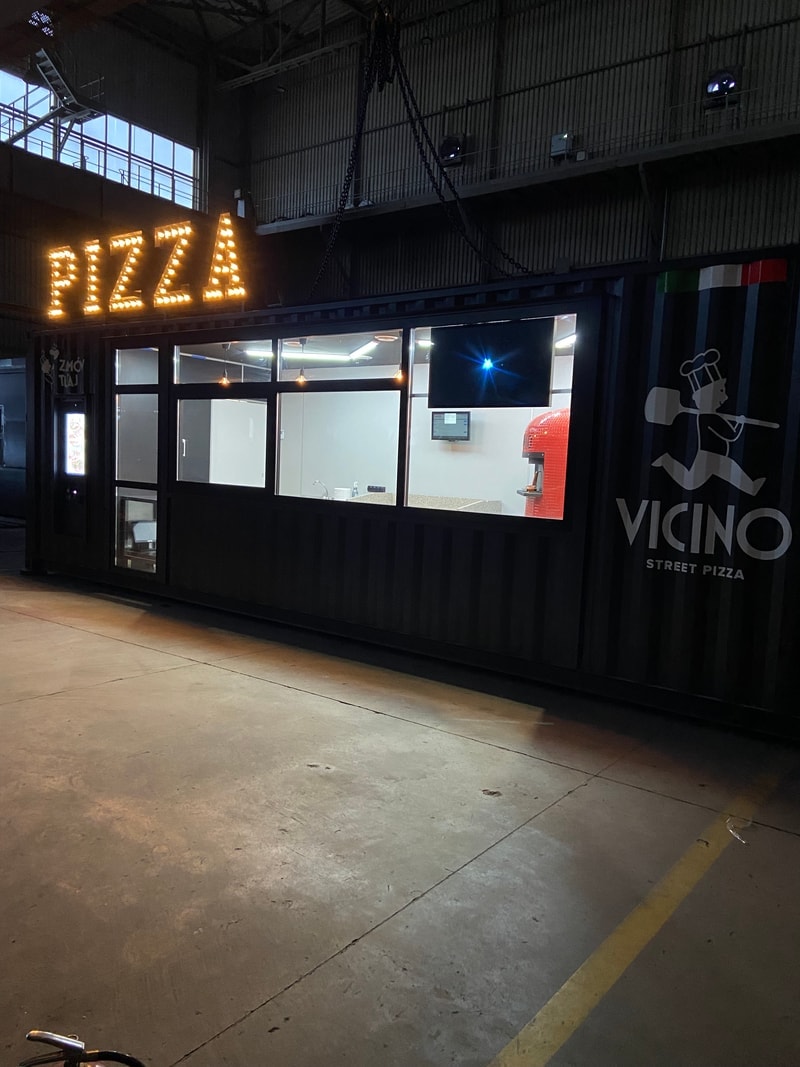

Additionally, the container features full electrical equipment, including a 32A three-phase connection, internal and external lighting (including the "PIZZA" sign), and automatic lighting in auxiliary rooms. The entire project was executed with attention to detail and in accordance with HARDBOX's high standards.
Technical Specifications

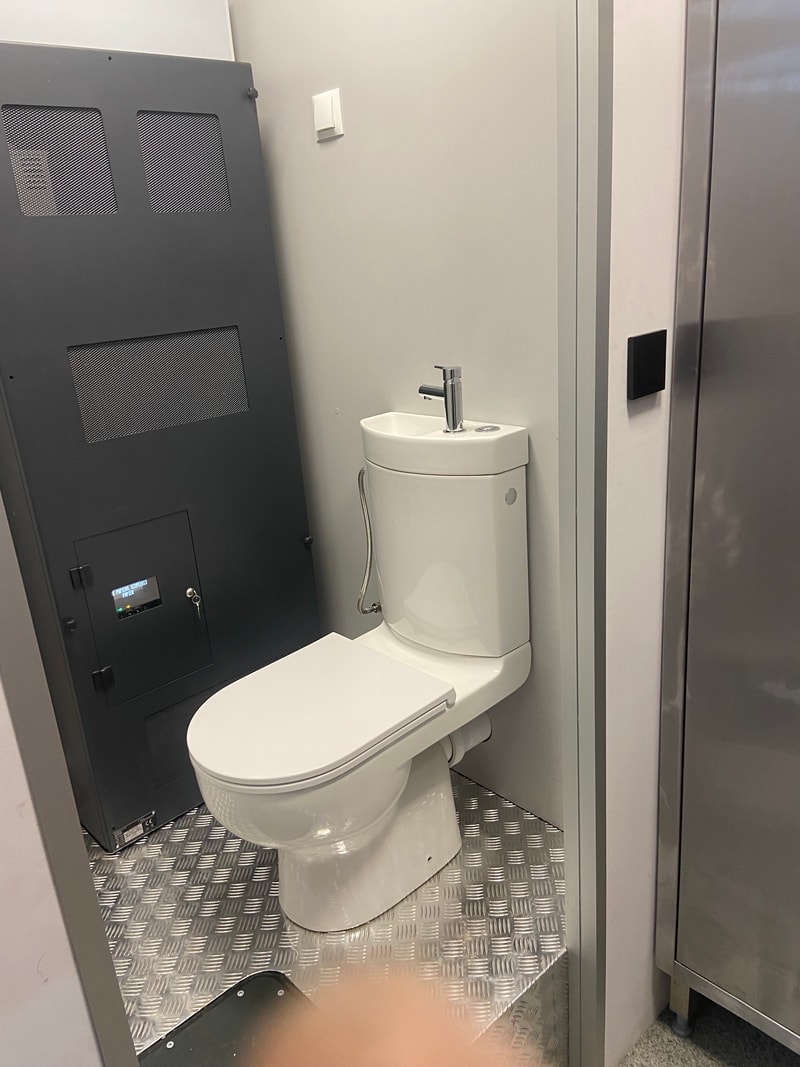

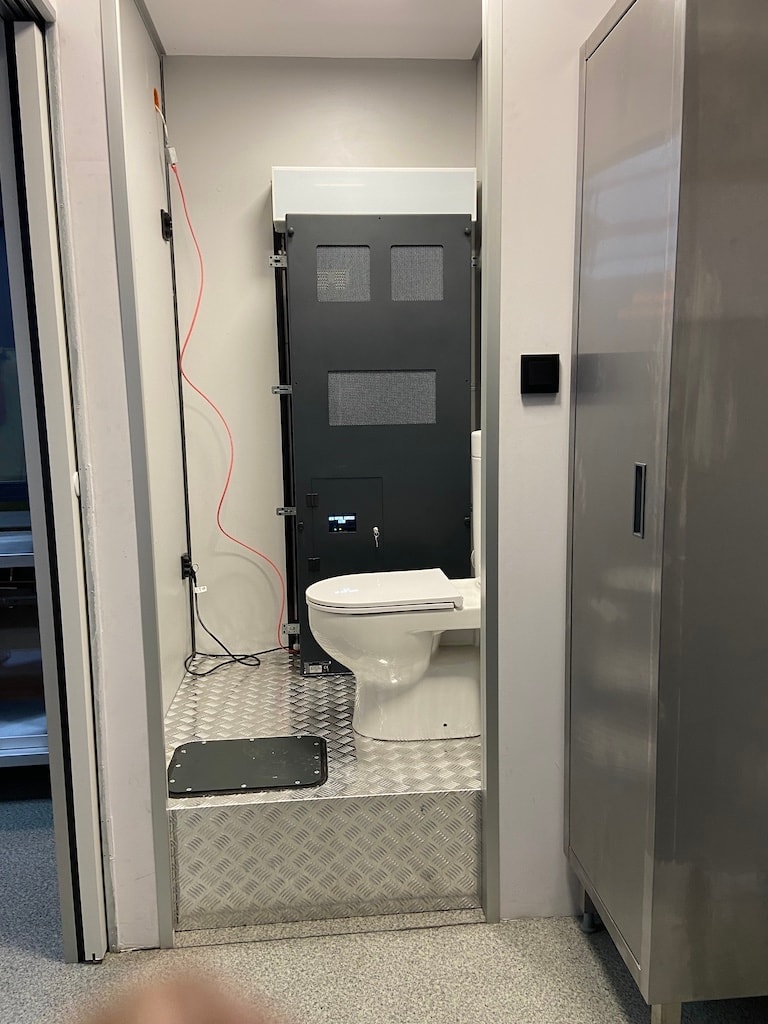

TECHNICAL SPECIFICATION • 40 HC Shipping Container, One-way. - Structural modifications and length adjustment according to project guidelines. - Insertion of reinforcing profiles into the structure. - Container protected with reactive primer and painted in RAL 7026 matte. • Facade - Facade made of 10mm exterior HPL panel (anthracite) • Structural Modifications - Steel profiles 20mm x 30mm x 2mm - doors/windows - Steel profiles 50mm x 50mm x 3mm - structural reinforcement • Wall - Shopfront with sliding window, 4/16/14 safety insulated glazing unit - Sliding window, lockable/tilt-and-turn - 18mm laminated board - Thermal insulation/40mm closed-cell PUR spray foam - External steel door, 900mm x 2100mm - 1x MDF door on a pocket frame, 1x folding MDF door • Ceiling - 50mm closed-cell PUR spray foam. - Gypsum board (plasterboard) - Concealed electrical installation • Flooring - Commercial-grade PVC flooring - Aluminum plate - Cold room; storage; toilet • Electrical System (concealed wiring) - External connection, three-phase 32A - Surface-mounted 2x12 modular distribution board - Connection to 10x 220V points, IP65 sealed sockets with earthing and shuttered contacts - Connection 1x Fixed socket 32A 5P 400V (Power) - Two lighting circuits inside the container - External lighting on a separate switch – PIZZA sign - Automatic lighting: WC / backroom / storage / cold room • Plumbing - Internal water supply (water drawn from a 300L stainless steel tank, water circuit supplied by a booster pump) - Hot/cold water (instantaneous water heater) - Sewage system (400L wastewater tank, wastewater discharge via fire hose connection, powered by 2x macerator pumps) • WC - Execution according to design, including equipment installation - Toilet operating on an internal water and sewage circulation system, with the possibility of connection to the main network. • Special Elements: - Advertising sign – Pizza
